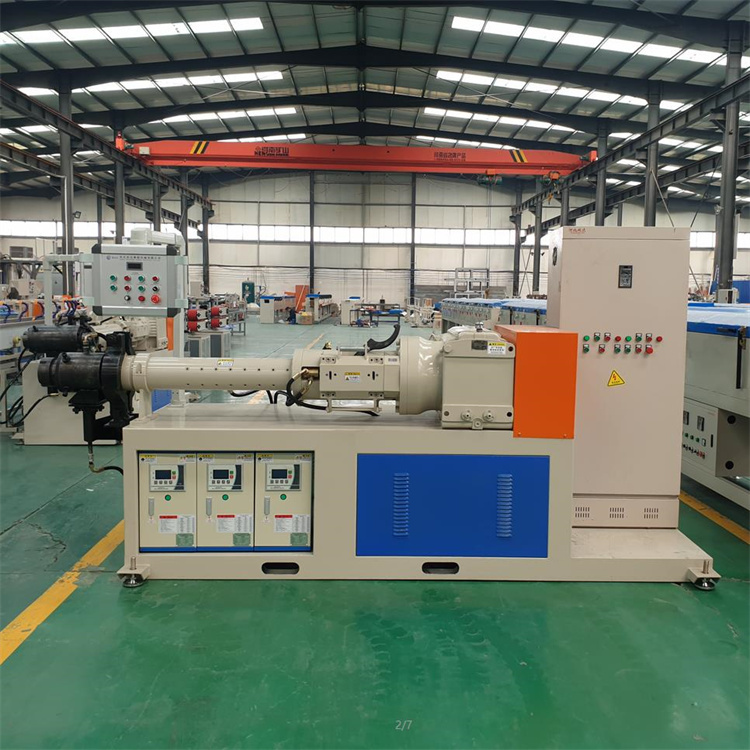

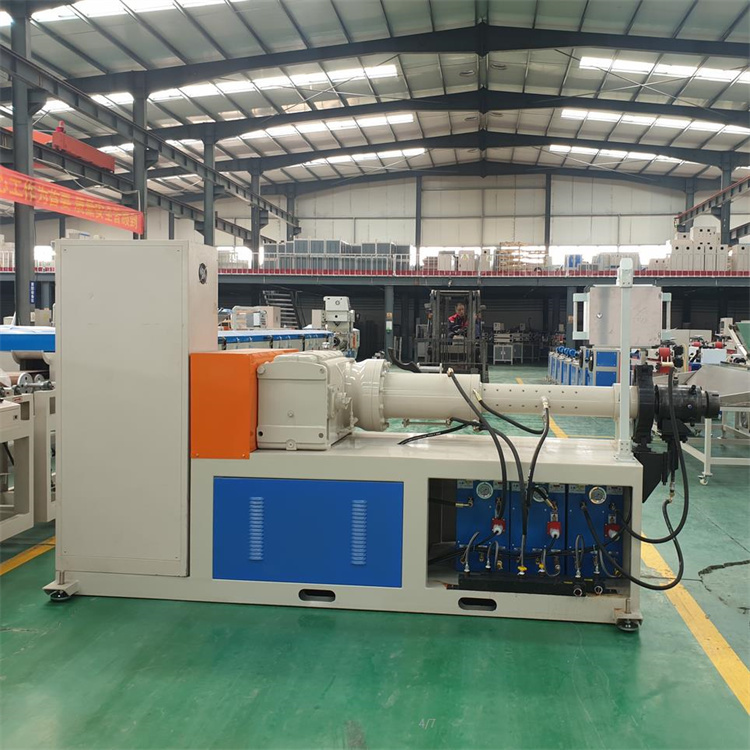

90 Rubber tube extruder

Can be used in the rubber industry, rubber pipe, warm air pipe, wire clamp hose, inner tube, tape, sub-mouth belt and other rubber products extrusion molding. Can also be used for small calender hot supply. Compared with general rubber extruder, cold feeding rubber extruder has the characteristics of high production capacity, low temperature of rubber material, less energy consumption, good mixing effect, uniform plasticizing and high yield.

Key words:

Classification:

Rubber, rubber and plastic extrusion line

Business Hotline:

400-0319-386

Related products

Feedback

90 Rubber tube extruder

Rubber tube extruder has excellent self-cleaning. Extruder screw uses 38Crmoala. Extruder extruded products can be adjusted according to the production process requirements of extrusion speed. Extruder head can be easily disassembled, and has a variety of extrusion specifications and cavity function.

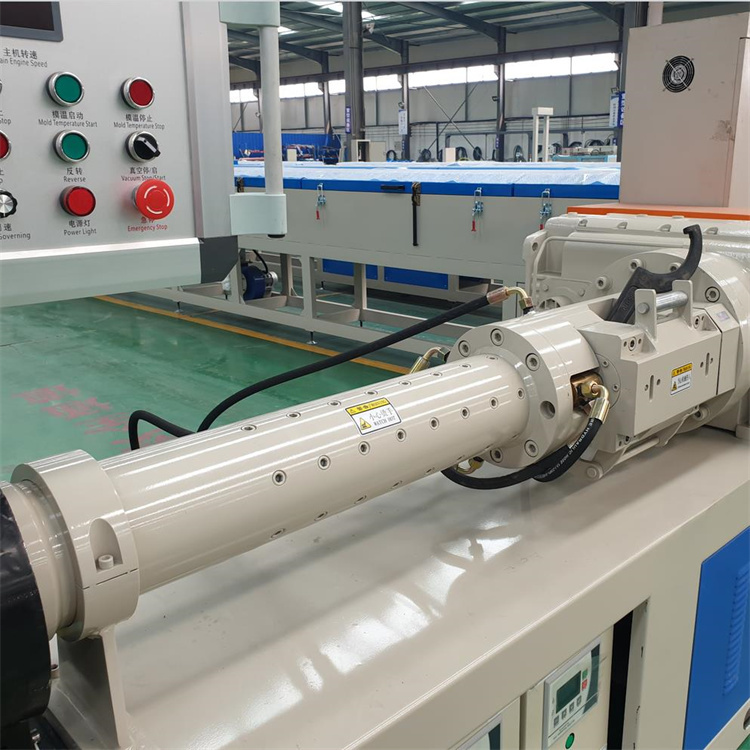

Cold feeding rubber extruder, the motor through the reducer deceleration drive screw rotation, screw is placed in a barrel with a pin, in the beginning of the screw, the side of the press roller, and screw for relative rotation, the rubber forced feed, and extruded from the end of the screw, the characteristics of the motor and the reducer between the belt drive and appropriate deceleration, The reducer adopts standard horizontal hard tooth surface reducer, the driving gear of the side press roller is positioned with a radial bearing, and the side press roller is fixed on a valve that can be turned down and opened through the bearing frame. The side of the bearing frame is processed with spiral rubber groove, and the barrel with pins adopts symmetrical structure.
