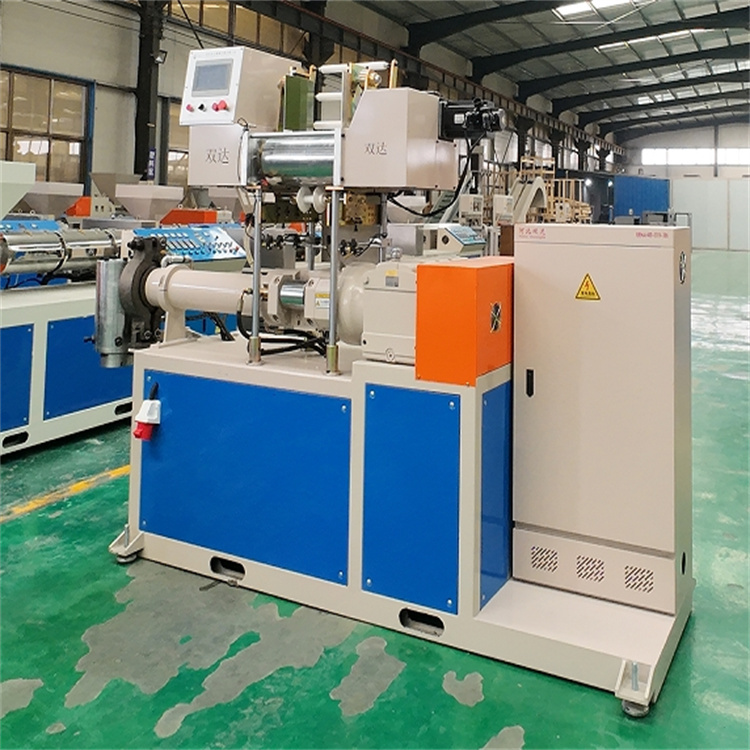

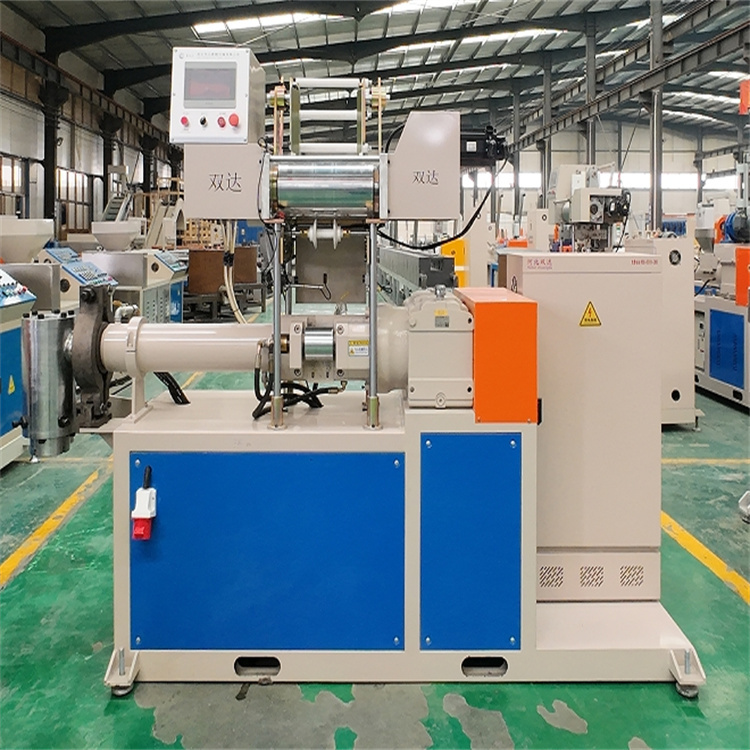

80 silicone hose extruder

Use: It is used for the efficient extrusion as well as continuous and short vulcanization of silicon-profiled bars such as silicon hose, composite silicon hose and so on. The unique design of silicon extruder and successful application of feeding device have promoted production stability, reduced workers’ dependence. The screw with high compression ratio and length-diameter ratio has made extruded compactness and mixing better. Its

productions have the characteristics of inside and outside surface smoothly , bubble-free , stable and unified dimensions.

Product description:

Application:

It is for Silicne gel to extrude for silicone strip and silicone hose . it can match with vertical silicone extruder to produce silicone hose. Extruder output around 120kg/h in our local market.

Working flow equipment units

Horizontal A: silicone extruder 20M curing box

Horizontal B: silicone extruder High temperature oven-- 10M curing box

Vertical: silicone extruder--working lifting plate-vertical High temperature oven-Transport tube rack-10M curing box

Machine size type:

Model	XJ-45	XJ-65	XJ-80	XJ-105
Screw diameter(mm)	45	65	80	110
Draw ratio	12：1	12：1	12：1	12：1
Motor Power(kw)	7.5	11	15	30
Screw Speed(r/min)	10-70	10-70	10-70	10-70
Output(kg/h)	20-30	40-60	120-150	200-280

Parameter:

Temperature: silicone extruder not more than 30 degree

High temperature oven around 300-400degree

curing box around 180-200 degree
