New steel with storage rack/ Storage rack

New steel with storage rack/ Storage rack

Number of views:
7
Product serial number
Quantity
-
+
Stock:
1
Product description

Steel plate, the application of the steel reel is to store the steel belt forward to supply the storage rack, the steel plate has two connected discs for uninterrupted forward transmitting.



About the line:

Working flow:

Steel plate-steel belt storage rack-90&75 compound rubber extruder (three composite head)-chiller(10P)-30m vulcanization box-3m stainless steel stink aluminum wheel with traction function -holing machine-steel breaking machine-forming machine- winder(plate)





1. Steel plate

Steel plate, the application of the steel reel is to store the steel belt forward to supply the storage rack, the steel plate has two connected discs for uninterrupted forward transmitting.

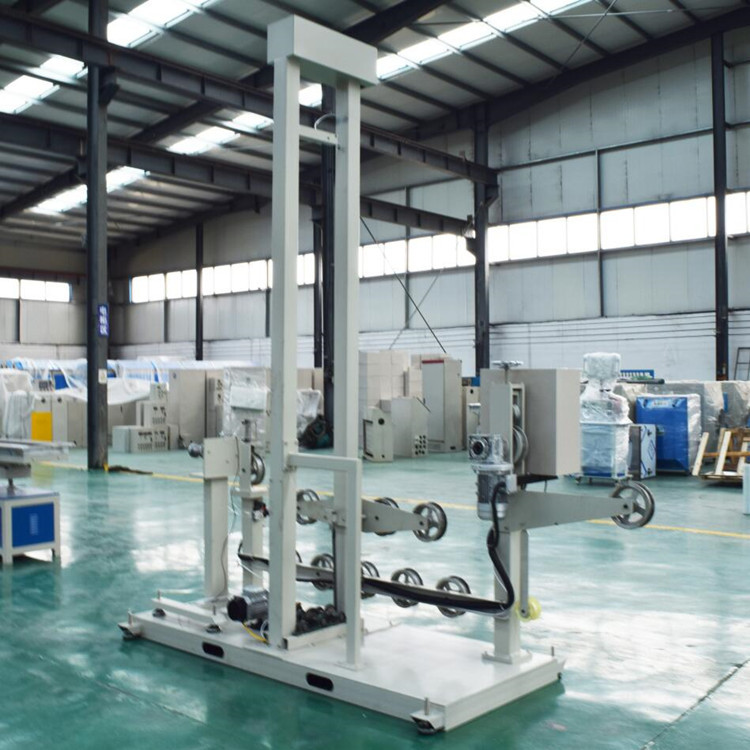

2. Storage rack

Steel plate, the application of the steel reel is to store the steel belt forward to supply the storage rack, the steel plate has two connected discs for uninterrupted forward transmitting.







3. 90&75 extruded machine

Through the storage rack the steel belt will pass through the middle of the 90&75 compound rubber extruder to form a rubber three composite product. Why we called rubber three composite product, that is actually a rubber sealing strip composed of three materials. Usually: solid EPDM, EPDM rubber foam and steel belt. So here we will use rubber three composite head.





4. 30 meters of vulcanization box

After extruded the rubber product, will go into the 30 meters of vulcanization box, the extruded product is shaped and vulcanized to change the raw rubber into mature rubber to maintain the performance of the rubber. The temperature of the vulcanization box and conveyor speeds can be adjustable according to different requirements. Continuous operation is convenient.








5.The three-meter stainless steel aluminum wheel sink with traction

After vulcanization in the vulcanization box the transmitted product needs to be cooled. The three-meter stainless steel aluminum wheel sink with traction not only has the effect of cooling and shaping the product, but also have the direction guiding and traction functions. In addition, the sink is equipped with four aluminum wheels, which gives enough power to pull rubber products with hard materials such as steel strips.





5. Holing machine

Three composite sealing strips Products for auto need to be made a hole at the corresponding location of the product for venting. so the three composite sealing strips need to pass through the holing machine after passing through the water tank, and the holing position of the punching machine can be adjusted.





6. Steel Belt broken machine

After the hole of the product is finished, it needs to pass through the broken belt machine. The hardness of the steel strip is still relatively large after the previous process, and the steel strip cannot be bent. In order to increase the flexibility of the steel strip, we need to go through the broken belt machine to make the steel strip. broken into a section to make the steel strip bend.







8. Winder

Finally, the extruded product will be winded and ready for use.





We could not find any corresponding parameters, please add them to the properties table
