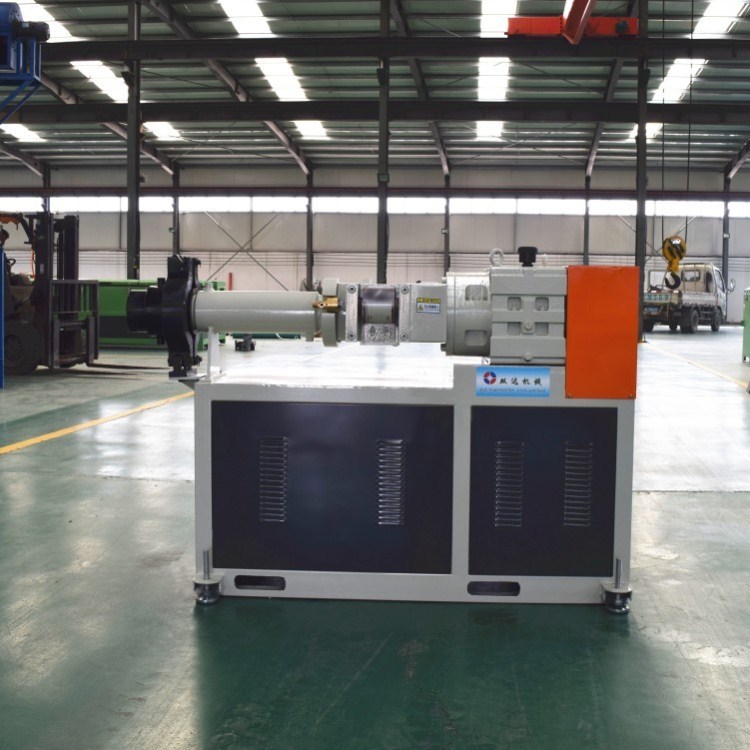

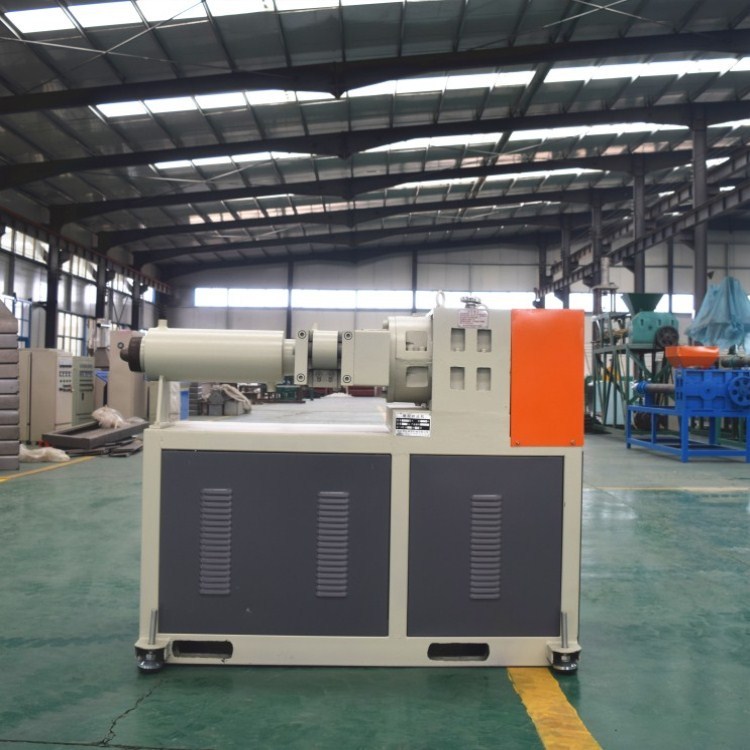

silicone strip extruder

Number of views:
20
Product serial number
Quantity
-
+
Stock:
1
Product description

Product description:

Application:

It is for Silicne gel to extrude for silicone strip and silicone hose . it can match with vertical silicone extruder to produce silicone hose. Extruder output around 120kg/h in our local market.



Working flow equipment units

Horizontal A: silicone extruder  20M curing box

Horizontal B: silicone extruder  High temperature oven--  10M curing box

 Vertical: silicone extruder--working lifting plate-vertical High temperature oven-Transport tube rack-10M curing box



Machine size type:

Model

XJ-45

XJ-65

XJ-80

XJ-105

Screw diameter(mm)

45

65

80

110

Draw ratio

12:1

12:1

12:1

12:1

Motor Power(kw)

7.5

11

15

30

Screw Speed(r/min)

10-70

10-70

10-70

10-70

Output(kg/h)

20-30

40-60

120-150

200-280





Parameter:

Temperature: silicone extruder not more than 30 degree

             High temperature oven around 300-400degree

             curing box around 180-200 degree













Company information:



What kind of machine are you manufacture?

Silicone:

Silicone strip extruder machine line

Silicone hose  extruder machine line

Silicone cable extruder machine line



Plastic

Plastic single/two/three ratten production line

Insulation strip production line

Decorative seal strip production line

Advertisement sidebar strip production line

Spiral sheath strip production line

Plastic Reinforced Spiral Tube strip production line

Plastic hose/medical tube strip production line

Plastic hard tube strip production line

Plastic profile strip production line

Plastic sheet  strip production line

Plastic seal strip production line

Plastic strip sealing strip



Rubber:

Rubber seal strip extruder machine line

Rubber hose  extruder machine line

Rubber reinforced extruder machine line

Rubber three compound strip extruder machine line



Contact: Ms. Jiang 18631970441



                Ms. Wang 15530958789  junyan-j@shuangdajx.cn
