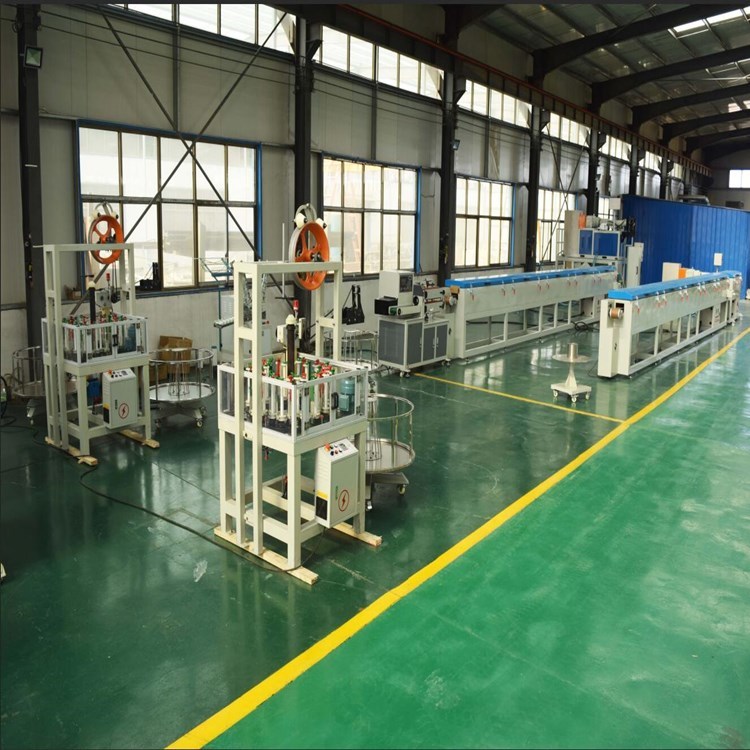

compound silicone hose production line

compound silicone hose production line

Number of views:
80
Product serial number
Quantity
-
+
Stock:
1
Product description

Use: It is used for the efficient extrusion as well as continuous and short vulcanization of silicon-profiled bars such as silicon hose, composite silicon hose and so on. The unique design of silicon extruder and successful application of feeding device have promoted production stability, reduced workers dependence. The screw with high compression ratio and length-diameter ratio has made extruded compactness and mixing better. Its

productions have the characteristics of inside and outside surface smoothly , bubble-free , stable and unified dimensions.



Product description:

Application:

It is for Silicne gel to extrude for silicone strip and silicone hose . it can match with vertical silicone extruder to produce silicone hose. Extruder output around 120kg/h in our local market.



Working flow equipment introduction:

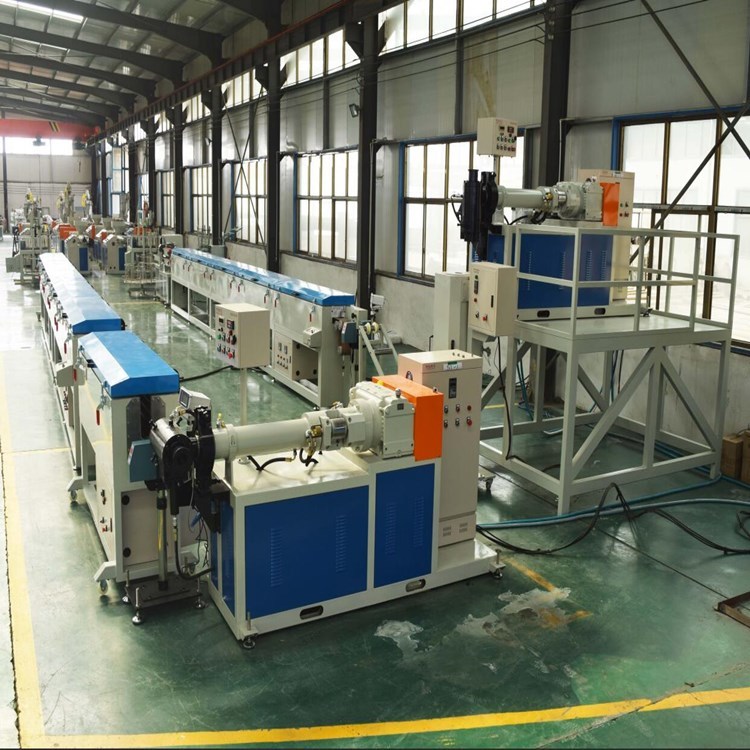

 Production process of silicone tube extrusion production line

1. Extrude the silicone tube through an extruder;

2. Introduce the extruded silicone tube into the vertical vulcanizing box for the first vulcanization treatment through a variable frequency lead device;

3. the silicone tube after the first vulcanization treatment is led out of the horizontal vulcanization box by the frequency conversion lead device.

4.Rewinding



 Highlight

1.Vertical high temperature setting: After the silicone tube is extruded, it enters the high temperature setting vertically, the setting effect is good, the tube precision is high, and the tube is relatively round.

 2.Two-stage*-type drying tunnel completely solves the problems of product indentation and roundness

The specification of the vertical high-temperature drying tunnel is 1.2 meters, and the product is basically cooked in 6 minutes after the stereotyped oven. The maximum temperature can reach 700 degrees.

The maximum temperature in the horizontal section (back section) is 400 degrees. Under normal circumstances, the production speed of the drying tunnel can exceed 20 meters per minute (depending on the size of the product)



VERTICAL HIGHT TEMPERATURE OVEN

HORIZONTAL HIGH TEMPERATURE OVEN



Extruder Machine size type:            standard size

Model

XJ-45

XJ-65

XJ-80

XJ-105

Screw diameter(mm)

45

65

80

110

Draw ratio

12:1

12:1

12:1

12:1

Motor Power(kw)

7.5

11

15

30

Screw Speed(r/min)

10-70

10-70

10-70

10-70

Output(kg/h)

20-30

40-60

120-150

200-280



We could not find any corresponding parameters, please add them to the properties table
